详细介绍
产品参数
- 型号：PZL43H_X_F
- 口径：50～400mm
- 压力：0.6MPa、1.0MPa、1.6MPa
- 材质：不锈钢、碳钢、灰铸铁、橡胶
主要外形及连接尺寸
|
MPa
|
DN
|
L
|
D1
|
D2
|
H
|
n-M
|
MPa
|
DN
|
L
|
D1
|
D2
|
H
|
n-M
|
|
0.6MPa
|
50
|
48
|
90
|
110
|
325
|
4-M12
|
1.0MPa
|
50
|
48
|
100
|
125
|
325
|
4-M16
|
|
65
|
48
|
110
|
130
|
340
|
4-M12
|
65
|
48
|
120
|
145
|
340
|
4-M16
|
||
|
80
|
51
|
125
|
150
|
355
|
4-M16
|
80
|
51
|
135
|
160
|
355
|
4-M16
|
||
|
100
|
51
|
145
|
170
|
405
|
4-M16
|
100
|
51
|
155
|
180
|
405
|
8-M16
|
||
|
125
|
57
|
175
|
200
|
440
|
8-M16
|
125
|
57
|
185
|
210
|
440
|
8-M16
|
||
|
150
|
57
|
200
|
225
|
520
|
8-M16
|
150
|
57
|
210
|
240
|
520
|
8-M20
|
||
|
200
|
70
|
255
|
280
|
580
|
8-M16
|
200
|
70
|
265
|
295
|
580
|
8-M20
|
||
|
250
|
70
|
310
|
335
|
670
|
12-M16
|
250
|
70
|
320
|
350
|
670
|
12-M20
|
||
|
300
|
76
|
362
|
395
|
820
|
12-M20
|
300
|
76
|
368
|
400
|
820
|
12-M20
|
||
|
350
|
76
|
412
|
445
|
925
|
12-M20
|
350
|
76
|
428
|
460
|
925
|
16-M20
|
||
|
400
|
89
|
462
|
495
|
1030
|
16-M20
|
400
|
89
|
482
|
515
|
1030
|
16-M22
|

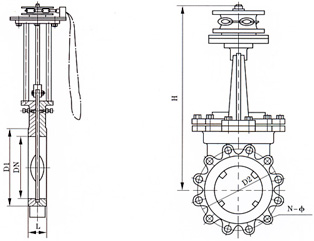

产品外形尺寸图
